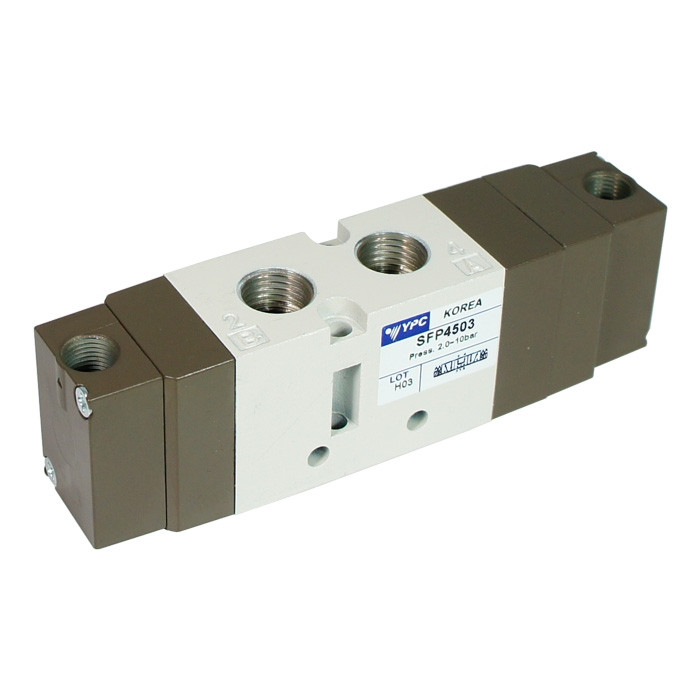

Flexible Pneumatic Valve SFP4503

Five way, three position, pressure center pneumatic valve (universal type). Port size is G 1/4, and at 5 bar this valve reaches 1000 l/min flow. Maximum working frequency is 3 cycles per second.

Be the first to review this product

€73.37 excl. tax
pc(s)

SFP4503 Five Way, Three Position, Pressure Center Pneumatic Valve

Additional Information

Dimensions

SKU YPC-SFP4503
manufacturer YPC
width 26 mm
function 5/3 pressure center
port size G 1/4″
return method spring
flow 1000 l/min
pressure range 2 – 10 bar
temperature range 5 – 60 °C
max. pressure 10 bar
medium compressed air, inert gases
response time (5 bar) 35 ms
work frequency 3 Hz
weight 1 kg
warranty 12 months
condition new
