Pneumatic ISO Valve SIP233

Pneumatic valve 5/3 closed center function, compatible with ISO-0 15407-1 standard (body width 18 mm), transition flow 700 l/min.

Be the first to review this product

€84.99 excl. tax
pc(s)

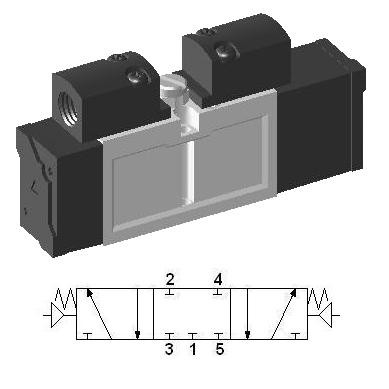

SIP233 - 5/3 Closed Center Pneumatic Valve by YPC

Additional Information

SKU YPC-SIP233
manufacturer YPC
width 18 mm
function 5/3 closed center
size ISO-0 18 mm
return method spring
flow 700 l/min
pressure range 2 – 10 bar
temperature range 5 – 60 °C
max. pressure 10 bar
response time (5 bar) 35 ms
work frequency 3 Hz
warranty 12 months
condition new
