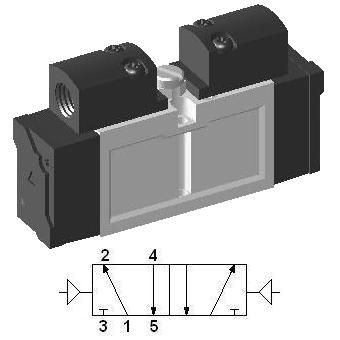

Pneumatic ISO Valve SIP320

Pneumatic ISO valve SIP320, function 5/2 double, body width 26 mm, pneumatic control port size G 1/8.

Be the first to review this product

€61.52 excl. tax
pc(s)

Pneumatic ISO Valve SIP320 - 5/2 Double

Additional Information

Dimensions

SKU YPC-SIP320
manufacturer YPC
width 26 mm
function 5/2 double
size ISO-0 26 mm
return method air + spring
flow 1000 l/min
pressure range 1.5 – 10 bar
temperature range 5 – 60 °C
max. pressure 10 bar
medium compressed air, inert gases
response time (5 bar) 25 ms
work frequency 5 Hz
eff. sectional area 11 mm²
warranty 12 months
condition new
