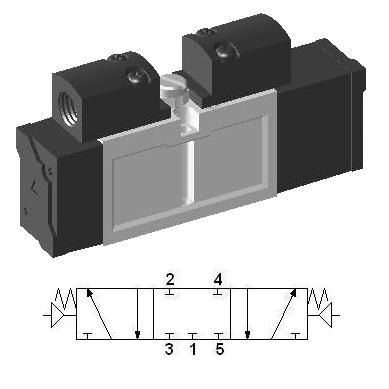

Pneumatic ISO Valve SIP333

Pneumatic 5/3 valve compliant with ISO-0 15407-1 / VDMA 24563 standard. Pneumatic control port size is G 1/8, body width 26 mm.

Be the first to review this product

€100.17 excl. tax
pc(s)

ISO Pneumatic Vavle SIP333, 5/3 closed center

Additional Information

SKU YPC-SIP333
manufacturer YPC
width 26 mm
function 5/3 closed center
size ISO-0 26 mm
return method spring
flow 1000 l/min
pressure range 2 – 10 bar
temperature range 5 – 60 °C
max. pressure 10 bar
medium compressed air, inert gases
response time (5 bar) 35 ms
work frequency 3 Hz
eff. sectional area 11 mm²
warranty 12 months
condition new
