Pneumatic ISO Valve SIP411

Pneumatic valve made with accordance to ISO-1 pneumatic valve standard (40 mm body width). Function 5/2 single. Can be used as a replacement for any ISO-1 compatible pneumatic valve.

Be the first to review this product

€91.57 excl. tax

Qty: pc(s)

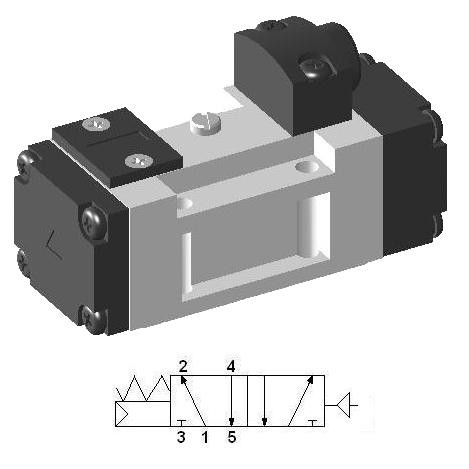

Pneumatic Valve with 5/2 Single Function - SIP411

Additional Information

Dimensions

SKU	YPC-SIP411
manufacturer	YPC
width	40 mm
function	5/2 single
size	ISO-1 40 mm
return method	air + spring
flow	1600 l/min
pressure range	1.5 – 10 bar
temperature range	5 – 60 °C
max. pressure	10 bar
medium	compressed air, inert gases
response time (5 bar)	30 ms
work frequency	3 Hz
warranty	12 months
condition	new
