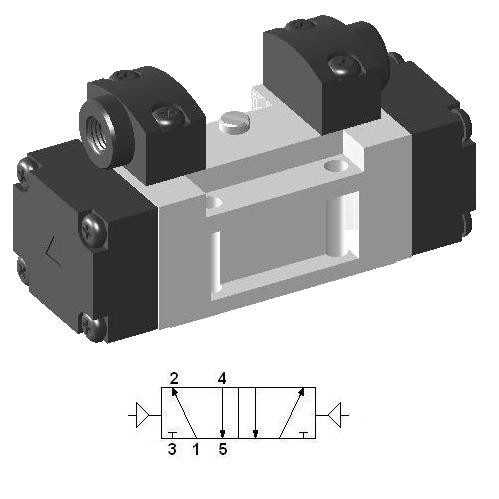

Pneumatic ISO Valve SIP420

SIP420 is a pneumatically operated ISO valve with 5/2 double function. Body width is 40 mm (ISO-1), and transition flow can reach 1600 l/min at 5 bar.

Be the first to review this product

€113.05 excl. tax

Qty: pc(s)

Pneumatic ISO-1 Valve SIP420 - 40 mm Body Width

Additional Information

Dimensions

SKU	YPC-SIP420
manufacturer	YPC
width	40 mm
function	5/2 double
size	ISO-1 40 mm
return method	none
flow	1600 l/min
pressure range	1.5 – 10 bar
temperature range	5 – 60 °C
max. pressure	10 bar
medium	compressed air, inert gases
response time (5 bar)	30 ms
work frequency	3 Hz
warranty	12 months
condition	new
