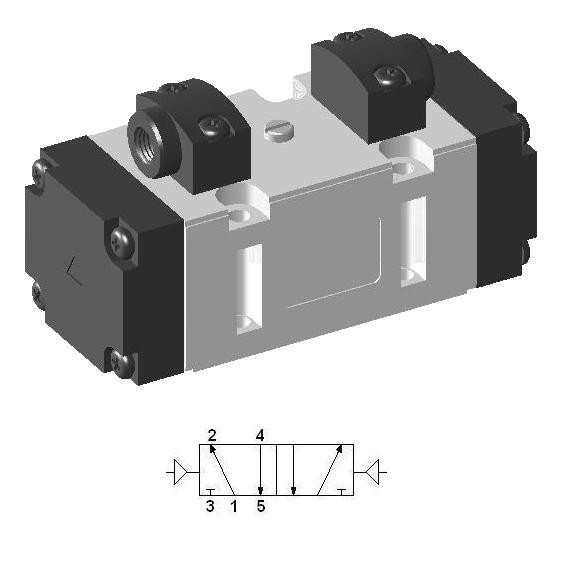

Pneumatic ISO Valve SIP520

Pneumatic valve with 5/2 double function, and manufactured with accordance to ISO-2 valve standard (body width 50 mm). Transition flow up to 3500 l/min. Working pressure range from 1.5 to 10 bar.

Be the first to review this product

€152.72 excl. tax

Qty: pc(s)

Pneumatic ISO Valve SIP520, 5/2 Double

Additional Information

Dimensions

SKU	YPC-SIP520
manufacturer	YPC
width	50 mm
function	5/2 double
size	ISO-2 50 mm
return method	none
flow	3500 l/min
pressure range	1.5 – 10 bar
temperature range	5 – 60 °C
max. pressure	10 bar
response time (5 bar)	35 ms
work frequency	3 Hz
warranty	12 months
condition	new
