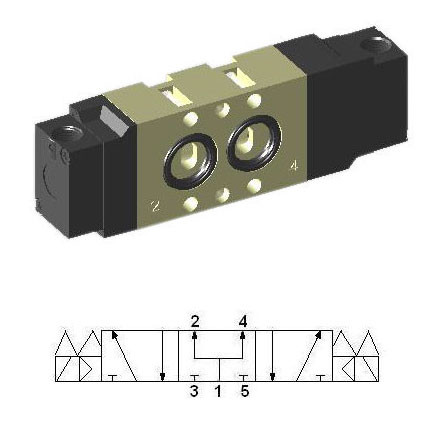

Pneumatic Valve NAMUR SNP3503

Pneumatic valve with NAMUR interface, body width: 23 mm, port size: G 1/4, function: 5/3 pressure center.

Be the first to review this product

€60.34 excl. tax
pc(s)

Pneumatic Namur Interface Valve SNP3503

Additional Information

Dimensions

SKU YPC-SNP3503
manufacturer YPC
width 23 mm
function 5/3 pressure center
port size G 1/4″
return method spring
flow 1000 l/min
pressure range 2 – 10 bar
temperature range 5 – 60 °C
max. pressure 10 bar
medium compressed air, inert gases
response time (5 bar) 40 ms
work frequency 3 Hz
warranty 12 months
condition new
