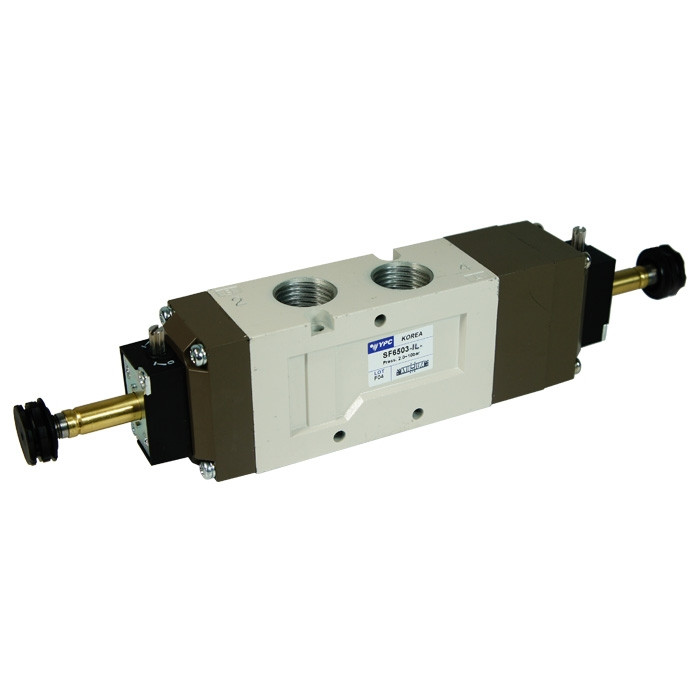

Flexible Solenoid Valve SF6503-IL

Flexible Solenoid Valve SF6503-IL ( old code: FZ5540 )

Be the first to review this product

€136.47 excl. tax
pc(s)

Solenoid valve SF6503-IL, 5/3 pressure center

Additional Information

SKU YPC-SF6503-IL
manufacturer YPC
width 36 mm
function 5/3 pressure center
port size G 1/2″
return method spring
flow 3500 l/min
pressure range 2 – 10 bar
temperature range 5 – 60 °C
max. pressure 10 bar
medium compressed air, inert gases
pilot type internal pilot
manual operator lever
response time (5 bar) 40 ms
work frequency 1 c/s
eff. sectional area 50 mm²
weight 1 kg
warranty 12 months
condition new
